琉球大おさな先生のTRAX hostをラズパイで動かす。 本家はこちら→ lut.eee.u-ryukyu.ac.jp/traxjp/tools-quick.html ですが、もっと易しい説明が欲しい学生さん向けに書いてみました。
なお、FPTで使用するNZ大D.Bailey先生の対戦ホスト(runtrax)は こちら→ www.traxgame.comになります。

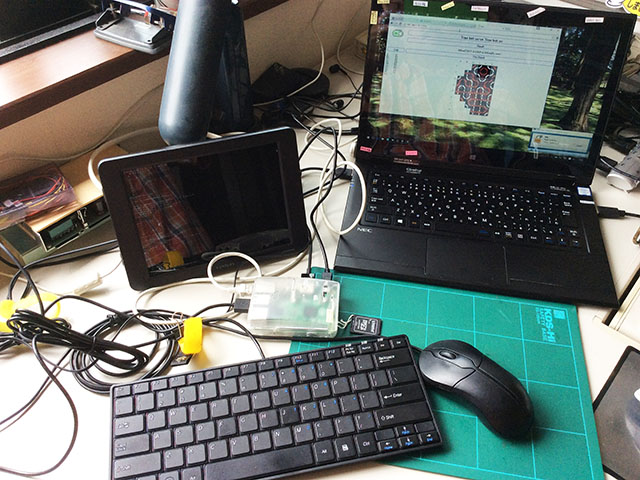

ラズパイ | Raspberry Pi 2 Type B がおすすめ。
⇒例えば
例えば 2016.7.14時点でRaspberry Pi 3 Type B では動かない。 そのうち動くようになるかも。 |
---|---|
ラズパイケース | 併せてケースも買うとよい。 ⇒例えば 例えば |
μSDカード | テキトーなμSDカード。3G以上。 |
電源 | テキトーなAC-USB電源。2A以上とれるもの。 スマホ急速充電対応の製品でよい。 ⇒例えば |
電源ケーブル | テキトーなUSB-microケーブル。 2A以上流せるもの。 スマホ急速充電対応の製品でよい。 ⇒例えば |
モニタ | テキトーなモニタ。HDMI入力端子があること。 ⇒例えば |
モニタケーブル | テキトーなHDMIケーブル。 ⇒例えば |
キーボード | テキトーなUSBキーボード。できれば英語配列の方が幸せかも。 ⇒例えば |
( USB HUB ) | USBで通信と給電を行うボードを接続する場合は、
ラズパイの電源負荷を減らすため self-powered なUSB-HUB があるとよい。 |
( 電流計 ) | 必須ではないが、念のためUSB電流計があるとよい。 ⇒例えば |
ネットワーク環境 | DHCP等でラズパイが接続できること。 外部ネットワークに接続できること。 タイルの画像ファイルなど 琉球大に見に行くらしい。 |
表示用PC | WindowsでもMacでもLinuxでもFreeBSDでもなんでもよい。 上記ネットワークに接続。ウェブブラウザが必要。 ChromeでもFireFoxでもSafariでもInternetExploreでもなんでもよい。 |
※ラズパイのIPアドレスがわかるのなら、外部から(例えば表示用のPCから)sshすればよいので、 モニタ、モニタケーブル、キーボードは不要。
自分でつくるなら…under construction…

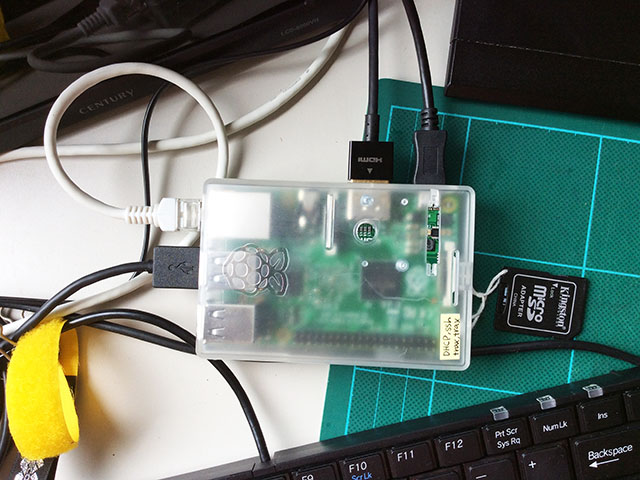

ラズパイをセットアップ(Keyboard, Monitor, LAN, Power)。 電源スイッチは無いので、電源は最後に接続。 ネットワークにDHCPサーバがいれば、自動でネットワークが設定される。
ログインのメッセージに対して次のように入力し、ログインする。 ラズパイのIPアドレスがわかっていれば、 外部から(例えば表示用のPCのTeraTermから)sshしてもよい。
FreeBSD/arm (rpi2_trax) (ttyv0) login: trax Password: ※空でリターンまたは trax |
Check the help of the matching program.
まずは、対戦プログラムのヘルプの確認。
trax@rpi2_trax:~ % match.sh -h Usage: match.sh [-lr] Player1 Player2 -t (x): Set communication timeout to (x) seconds -l : Enable game log -r : Player 1 as black, Player 2 as white -w : Enable 'wait' mode on communication. Quick moves will appear slowly -h : Show this message Player = 'path to executable file' : executable trax client 'path to character device' : serial port device 'TCP port # (100xx)' : TCP port auto: : autoscan serial ports bot: : 'trax-player' bot |
Execute demo match for a test.
ためしにテストプログラム対テストプログラムをしてみる。
trax@rpi2_trax:~ % match.sh bot bot Player 1: Trax bot Player 2: Trax bot socat TCP:localhost:10101,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 socat TCP:localhost:10102,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 White player : TCP port 10101 Black player : TCP port 10102 Players: 0X / 0X Turn 1 (player 0: white): @0+[X:0, Y:0, Tile:+] |@ A | 0| | 1| + | Going to next turn. (中略) Going to next turn. Turn 16 (player 1: red): B1\[X:2, Y:1, Tile:\] R Forced play: [X:2, Y:2, Tile:\] RUD Forced play: [X:1, Y:2, Tile:/] RD Forced play: [X:1, Y:1, Tile:/] RD |@ A B C D E F | 0| | 1| / \ \ \ | 2| / \ + / + | 3| + + + \ + \ | 4| \ / \ | 5| \ / + | 6| \ / / | 7| \ / / | 8| / | ==== 0X(white) GOT A LOOP in 0X(red)'s turn ! |
Demo match is executed and reported as text above. If you feel too fast to follow, you can set wait time, for example, match.sh -t 1 -w bot bot.
…という感じで対戦が実行され、テキストで画面に表示される。 速すぎるようなら match.sh -t 1 -w bot botなどとすると 待ち時間が入る。
First, check and record IP address of the host Raspberry Pi. The command of ifconfig can be used to check it.
まず、ラズパイのIPアドレスを確認する。 ifconfigコマンドを実行して表示されるIPアドレスを記録しておく。
trax@rpi2_trax:~ % ifconfig lo0: flags=8049 |
In the example above, IP address is 192.168.100.37.
たとえば、上記の例では 192.168.100.37 になる。

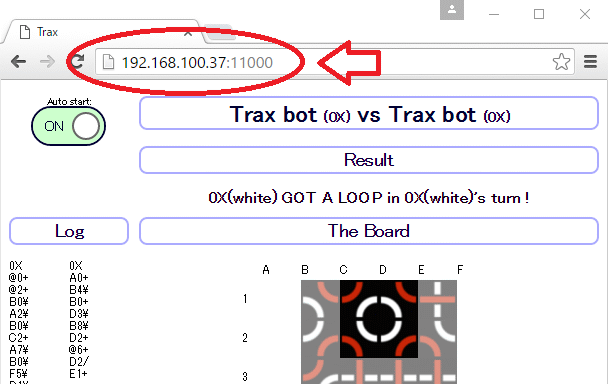

Launch a web browser on your PC and connect to the host Raspberry Pi with the address and port number 11000. First the browser may not connect the host, but can connect by reloading the page after executing trax-httpd.
次に、表示用のPCでウェブブラウザを起動し、 アドレス入力部分に上記確認のアドレスとポート番号11000番を入力する。 最初は接続できないかもしれないが、 ラズパイ側でtrax-httpdを起動した直後に再読み込みすると接続できる。
connect to 接続先 |
|
Launch matching program and web server on the host Raspberry Pi, redirecting the output of the maching program to the web server via pipe ( | ).
表示側の準備ができたら、ラズパイで対戦とウェブサーバを起動する。 対戦プログラムにパイプ(「|」の縦棒)で並べて trax-httpd を実行する。
trax@rpi2_trax:~ % match.sh -t 1 -w bot bot | trax-httpd Waiting on TCP port 11000... * GET /?_=1467690342267 HTTP/1.1 * GET /?_=1467690342268 HTTP/1.1 Player 1: Trax bot Player 2: Trax bot socat TCP:localhost:10101,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 socat TCP:localhost:10102,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 White player : TCP port 10101 Black player : TCP port 10102 Players: 0X / 0X Turn 1 (player 0: white): @0+[X:0, Y:0, Tile:+] |@ A | 0| | 1| + | Going to next turn. ------------------------------ * GET /?_=1467690342269 HTTP/1.1 (中略) Turn 21 (player 0: white): D1\[X:4, Y:1, Tile:\] RD Forced play: [X:3, Y:1, Tile:/] LRD |@ A B C D E F | 0| | 1| \ / \ + | 2| / \ / \ | 3| / + + + | 4| \ \ / + \ | 5| \ + \ \ \ | 6| + + / / / | 7| + + \ / / / | 8| \ \ / / / | 9| \ \ / / / | ==== 0X(white) GOT A LOOP in 0X(white)'s turn ! |
Then, the match will be shown in the web browser turn-by-turn.
これで、PCのウェブブラウザには対戦の様子が順次表示されているはず。
ラズパイに対戦するFPGAボードやマイコンボードをUSB経由シリアル(UART)接続する。 Nexys4やZYBOなら、直接USB接続すればよい。 ただし、USBの電源容量に注意。 電流を喰うようなら、電源を別でとるなり、 ラズパイとの間にパスパワーのUSBハブを入れるなりすること。
つないだら、テストプログラム(bot)と対戦させてみる。 プレイヤをautoと指定すると、 COM port(USB-Serialの接続)を自動でスキャンして対戦を始める。
trax@rpi2_trax:~ % match.sh -t 1 -w bot auto Player 1: Trax bot Player 2: Serial autoscan socat TCP:localhost:10101,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 White player : TCP port 10101 Trying /dev/cuaU0 Black player : serial port /dev/cuaU0 timeout! Failed to receive player code from Black Trying /dev/cuaU1 Black player : serial port /dev/cuaU1 OK! code=EF Players: 0X / EF Turn 1 (player 0: white): @0/[X:0, Y:0, Tile:/] |@ A | 0| | 1| / | Going to next turn. (中略) Turn 4 (player 1: red): A3\[X:1, Y:3, Tile:\] U Forced play: [X:2, Y:3, Tile:/] LU |@ A B | 0| | 1| + | 2| / \ | 3| \ / | ==== EF(red) GOT A LOOP in EF(red)'s turn ! |
この例では
うまくいかないときの基本的な確認方法を解説する。
FreeBSDではCOM port(シリアル接続)は/devの下のcu*という
名前のデバイスファイルとして認識される。
trax@rpi2_trax:~ % ls /dev bpf fido mmcsd0s2 ttyU1 ufssuspend bpf0 full mmcsd0s2a ttyU1.init ugen0.1 console geom.ctl msdosfs ttyU1.lock ugen0.2 consolectl gpioc0 nfslock ttyu0 ugen0.3 ctty iic0 null ttyu0.init ugen0.4 cuaU0 iic1 openfirm ttyu0.lock ugen0.5 cuaU0.init kbd0 ptmx ttyv0 ugen0.6 cuaU0.lock kbd1 pts ttyv1 ugen0.7 cuaU1 kbdmux0 random ttyv2 ukbd0 cuaU1.init klog reroot ttyv3 ums0 cuaU1.lock kmem sndstat ttyv4 urandom cuau0 led snp ttyv5 usb cuau0.init log stderr ttyv6 usbctl cuau0.lock mdctl stdin ttyv7 vchiq devctl mem stdout ttyv8 vcio devctl2 midistat sysmouse ttyv9 xpt0 devstat mixer0 ttyU0 ttyva zero fb0 mmcsd0 ttyU0.init ttyvb fd mmcsd0s1 ttyU0.lock ufs |
ボード接続の前後でcu*が変わらないようであれば、 USBのケーブル、コネクタ、ハブの接続を見直し、さらには断線や故障を疑う。
trax@rpi2_trax:~ % more /etc/remote # $FreeBSD: head/etc/remote 184352 2008-10-27 17:19:14Z thompsa $ # # @(#)remote 5.2 (Berkeley) 6/30/90 # (中略) ucom1:dv=/dev/cuaU0:br#9600:pa=none: ucom2:dv=/dev/cuaU1:br#9600:pa=none: ucom3:dv=/dev/cuaU2:br#9600:pa=none: ucom4:dv=/dev/cuaU3:br#9600:pa=none: ucom5:dv=/dev/cuaU4:br#9600:pa=none: ucom6:dv=/dev/cuaU5:br#9600:pa=none: ucom7:dv=/dev/cuaU6:br#9600:pa=none: ucom8:dv=/dev/cuaU7:br#9600:pa=none: |
この例では/dev/cuaU1が対象ポートであり、 それがucom2という名前になっていることがわかる。 その名前でtipを起動する。 スピード(ボーレート,baudrate,bps)は各自の設定に合わせる。 この例では19200bpsとする。
trax@rpi2_trax:~ % tip -19200 ucom2 can't open log file /var/log/aculog. connected (-Tを入力)EF (-Wを入力)@0/ (~.を入力)~ [EOT] |
チームコード問合せ(-T)への応答や、先手を指示(-W)した場合の初手を確認する。 このとき、こちらから入力した文字は見えない。 「 ~. 」(チルダとピリオド)あるいは「 ~^D 」(^Dはコントロールを押しながらD)で終了する。
USBひとつでSerialがふたつ見えるボード(Nexys-4,ZYBO,ZedBoard等)と
Raspbian等Linux系の環境の組合せで使用すると
プレイヤのauto指定がうまく働かないことがある。
この場合、シリアルのデバイス
(参考)Raspbian の場合 |
---|
pi@raspberrypi:~ $ ls /dev autofs loop6 ram7 tty16 tty43 uhid block loop7 ram8 tty17 tty44 uinput : (中略) : : : : : loop3 ram4 tty13 tty40 ttyprintk xconsole loop4 ram5 tty14 tty41 ttyUSB0 zero loop5 ram6 tty15 tty42 ttyUSB1 pi@raspberrypi:~ $ match.sh bot /dev/ttyUSB1 Player 1: Trax bot Player 2: character device /dev/ttyUSB1 socat TCP:localhost:10101,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 White player : TCP port 10101 Black player : serial port /dev/ttyUSB1 Players: 0X / EF Turn 1 (player 0: white): @0+[X:0, Y:0, Tile:+] |@ A | 0| | 1| + | Going to next turn. (中略) Turn 6 (player 1: red): @1/[X:0, Y:1, Tile:/] R Forced play: [X:1, Y:2, Tile:\] RU |@ A B C | 0| | 1| / \ | 2| \ / | 3| + | 4| + + | ==== EF(red) GOT A LOOP in EF(red)'s turn ! |
通信テスト用のTRAXプレイヤを走らせるテキトーなマシンを用意する。 FreeBSD でも Linux でも Windows上のcygwinでも可。 socat というコマンドをインストールしておく。
cygwin | インストーラで socat を探してインストール |
---|---|
linux | sudo apt-get install socat |
FreeBSD | (たぶん)pkg install socat |
通信テスト用のTRAXプレイヤは次のとおり。 @1に+を置き続けるのでそのうち反則負けする。
/* TRAX player for communication test which may cause violation */ #include |
通信テスト用マシンでこれをコンパイルして実行してみる。
通信テスト用マシンにて |
---|
izumi@cygwin$ gcc traxtest.c (コンパイル終了) izumi@cygwin$ ./a.exe -T -T ZZ -W -W @0+ A0/ A0/ @1+ A0/ A0/ @1+ (Ctrl-Cを押して強制終了) |
対戦ホストプログラムを起動する。 LAN接続するプレイヤはTCPポート番号を指定する。 10001,10002,10003,...を使うものとする。 次の例では、先攻は bot, 後攻はLANでTCP10001番ポートに接続する。
対戦ホストマシンにて |
---|
trax@rpi2_trax:~ % match.sh -w -t 1 bot 10001 Player 1: Trax bot Player 2: TCP port 10001 socat TCP:localhost:10101,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 White player : TCP port 10101 Black player : TCP port 10001 (接続待ちの状態になる) |
通信テスト用マシンにて、socat を使って通信テスト用プレイヤを起動し、 入出力を対戦ホストマシン(この例ではIPアドレス 192.168.100.37)の TCP10001番ポートに接続する。
socatの使い方 |
|
通信テスト用マシンにて |
---|
izumi@cygwin$ socat TCP:192.168.100.37:10001 exec:./a.exe,pty,ctty,echo=0 -T -B @0/ C1\ C2+ C2/ C3/ C0/ |
プレイヤが接続されると、対戦ホスト側でも対戦の経過が表示される。
対戦ホストマシンにて |
---|
trax@rpi2_trax:~ % match.sh -w -t 1 bot 10001 Player 1: Trax bot Player 2: TCP port 10001 socat TCP:localhost:10101,retry=100,interval=0.1 exec:"trax-player",pty,ctty,echo=0 White player : TCP port 10101 Black player : TCP port 10001 Players: 0X / ZZ Turn 1 (player 0: white): @0/[X:0, Y:0, Tile:/] |@ A | 0| | 1| / | Going to next turn. (中略) Turn 12 (player 1: red): @1+[X:0, Y:1, Tile:+] **** ISOLATED **** |@ A B C D E F G H | 0| | 1| + / \ | 2| + + + + + / \ | 3| \ / + | 4| / | ---- VIOLATION ! ---- ==== ZZ lost the game by violation. |
